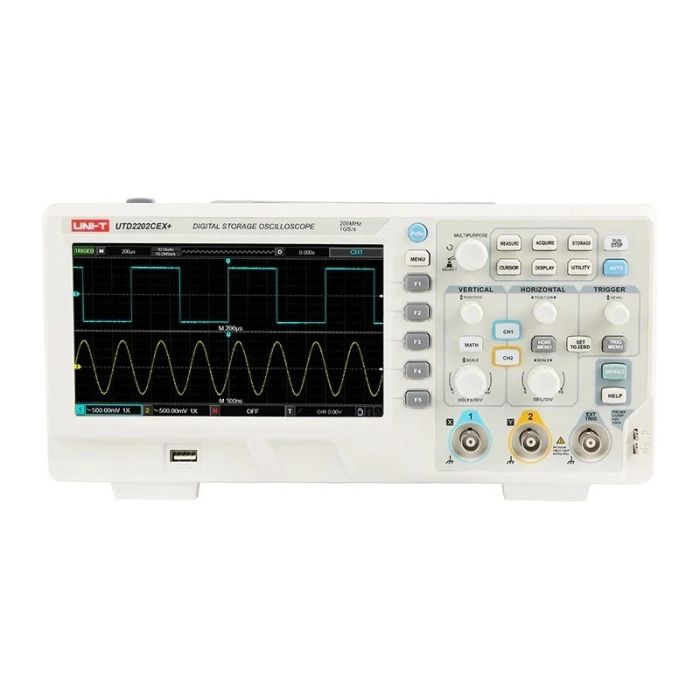

UNI-T 200MHz 彩色數碼示波器 UTD2202CEX+
SKU
UNI-T UTD2202CEX+1
HK$3,488.00
***此為預購貨品，需時7-14天，到貨後將立即安排出貨

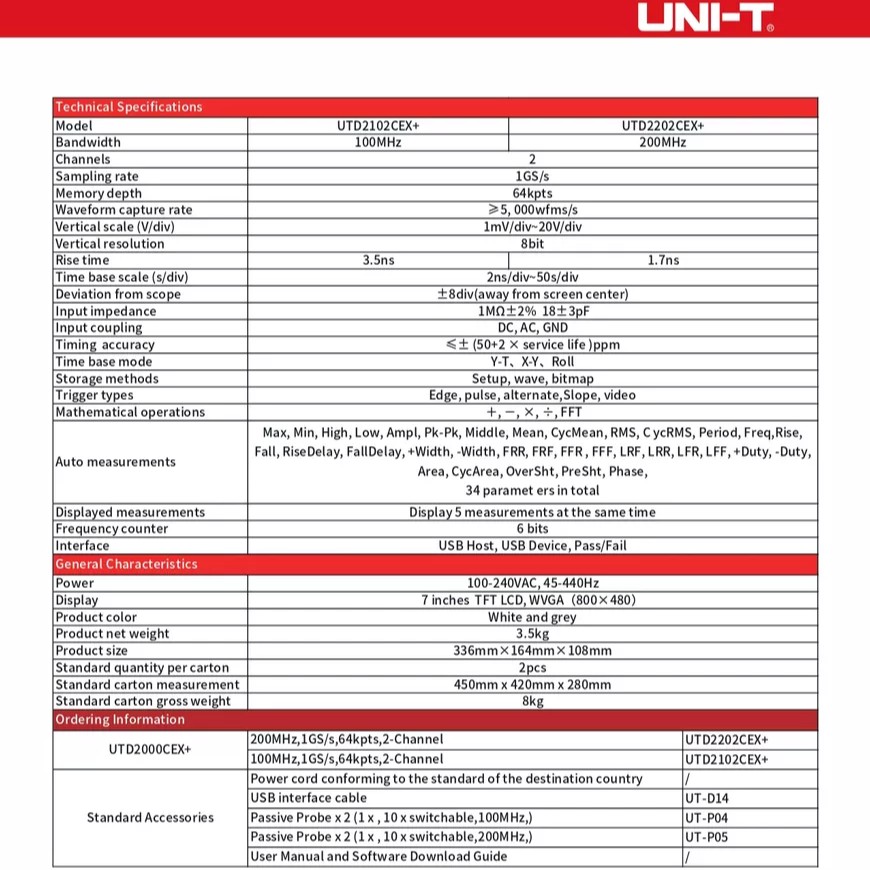

- 200MHz bandwidth
- 2 channels, low noise floor, wide vertical range: 1mV/div~20V/div
- Memory depth: 64kpts
- System software upgrade via USB drive
- 7 inches TFT LCD
- Supports USB storage device;
- Communication with and remote control of computer through the USB device
產品包括
產品特色
-
Provides a richer trigger mode, 34 kinds of automatic parameter measurement and common mathematical operation functions,
-
Optimizes the panel operation, which greatly improves the work efficiency and can easily cope with the measurement needs of complex signals.
-
Waveform capture rate up to 20,000wfms/s, upgrade to 8-inch screen to help observe more waveform details
- Display range is 8divX16div, and has a new AUTOSET strategy, which can easily cope with complex test scenarios.
- Record up to 1000 frames, and can achieve better waveform analysis effects through playback and storage functions.
- With 9 languages, it can meet the needs of users in more countries. Output standard square wave 10Hz, 100Hz, 1kHz, 10kz optional.
-
AC100-240V, 45-440Hz
7" TFT LCD, WVGA (800x480)
Size 336x164x108mm
Weight 3.5kg - Standard Accessories:
AC Power Cord
USB Card
Passive Probe x2
